Deck Hardware

At Trex, innovation has inspired every one of our performance-grade outdoor living products, right down to our efficient installation techniques and smart tools and hardware.

Featured Hardware: Trex Hidden Fasteners

Trex Hideaway® Hidden Fastening System

In pursuit of the perfect deck, all Trex® decking lines come with a hidden installation option. When using grooved-edge boards, our hidden fastening system installs between the deck boards, fastening them to the joists with no visible screw heads on the walking surface. This precision also creates perfectly consistent spacing between the boards for a flawless look across the entire deck. This system includes a few simple components:

Trex Hideaway Universal Fastener with grooved composite deck board

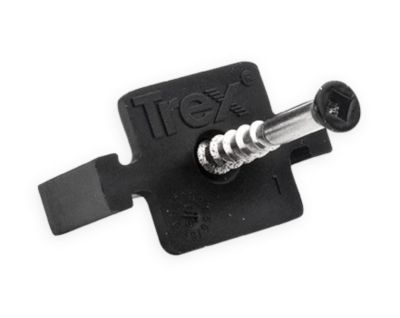

The Universal Fastener

This self-gapping hardware is the main fastener component that attaches two boards toge ther. It features a stainless steel screw already set in the fa stener for increased durability and easier installation. Available in versions for Trex Elevations® steel framing or for wood framing.

  • 1 box covers 50 sq. ft. (4.6 m2)
  • 1 bucket covers 500 sq. ft. (46.5 m2)
Trex Hideaway Universal Fastener
Trex Hideaway Hidden Fastening System start clip used to install Transcend grooved edge composite decking

The Start Clip & Connector Clip

These are black, stainless steel fasteners designed exclusively for Trex and used to install the perimeter deck boards.



  • Start Clip: 1 bag covers 400 sq. ft. (37 m2)
  • Connector Clip: 1 box covers 50 sq. ft. (4.6 m2)
  • 1 bucket covers 500 sq. ft. (46.5 m2)
Trex Hideaway Hidden Fastening System start clip
Trex Hideaway Hidden Fastening System - connector clip image
Trex groove cutter

Groove Cutter

Traditional square edge boards require traditional deck screws for installation; however, using a Trex groove cutter routes the necessary underside groove into any tr aditional board to accommodate our hidden fastening system.

  • Can be used on any Trex board.
Trex Hideaway Hidden Fastening System Gun pail

Gun Pail

This complete system includes all the components necessary for hidden fastener installation of a 500-square-foot deck with a pneumatic gun, including connector clips, pneumatic screws and complete installation instructions.

  • 1 bucket covers 500 sq. ft. (46.5 m2)

Trex Elevations® Clips

Our prefabricated, durable Universal Connector Clips and Start Clips feature a precision screw designed for installation with our unique steel frame.

Trex Elevations universal connector clip

Elevations Universal Connector Clip

Glass-filled nylon.

  • 1 box covers 50 sq. ft. (4.6 m2)
Trex Elevations start clip

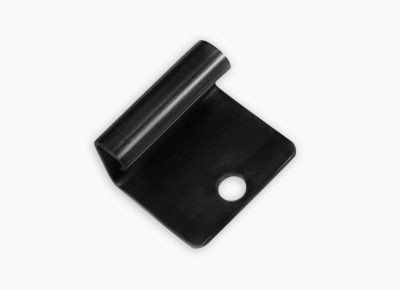

Elevations Start Clip

Stainless steel.

  • 1 bag covers 400 sq. ft. (37.2 m2)



Trex Blade

Trex Blade™ is the first saw blade on the market specifically designed for cutting composite decking materials. Uniting with Diablo, Freud America’s premier brand of construction tools, Trex makes cutting composite materials easier for contractors and do-it-yourselfers. The new blade series features a modi fied triple chip tooth design, Perma-SHIELD® non-stick coating, specific Ti-Co™ Hi-density carbide and super thin-kerf design. The blades provide cleaner cuts with no swirl marks and a longer cutting life.

7 inch diameter Trex Blade for cutting composite decking materials
  • 7 1/4" (184mm) Diameter)
  • 44 Teeth
10 inch diameter Trex Blade for cutting composite decking materials
  • 10” (254 mm diameter)
  • 72 teeth
12 inch diameter Trex Blade for cutting composite decking materials
  • 12” (305mm diameter)
  • 84 Teeth
Diablo®, Perma-SHIELD® and Ti-Co are trademarks of Freud, a manufacturer of high quality woodworking tools and a leader in the carbide cutting tool industry.
