Trex Signature® Railing
A Customized Complement To Modern Decking.
Effortless style, exceptional strength—that’s Trex Signature® Railing.
Durable and design-minded, our powder-coated aluminum railing can be customized to suit any style. A glass infill keeps things clean and contemporary, while mesh or rod railing lends an industrial edge.
Available in a selection of elegant neutrals and backed with the stability only aluminum railing offers, along with Trex’s 25-year limited warranty.
Choose from round or square balusters for classic appeal. Got a great view? Consider curving your rails to mimic the sweeps of garden below. And entertainers, take note: wide, beverage-ready cocktail railing may just be the ideal choice for you.

Rod Rail
- No special installation tools or tightening required; a quick and easy alternative to cables
- Can be topped with a cocktail rail for added functionality

Curved Rail
- Curvable hand railing and swivel brackets unite oppositional angles
- Custom order now, enjoy complete freedom of design later

Cocktail Rail
- The perfect resting spot for planters, drinks and more
- Choose your preferred color of Trex decking to match or contrast your deck treads
Trex Signature® Railing Components
Trex Signature® is a 3-Step process. Choose Trex Signature® aluminum posts (which include a cap and skirt) for Steps 1 & 2 and pair with a rail and baluster kit or a rail and rod kit (Step 3). Or choose Trex composite post sleeves, caps and skirts for Steps 1, 2a & 2b, and then continue on to Step 3.


- 1. Post Sleeve
- 2a. Post Sleeve Cap
- 2b. Post Sleeve Skirt
- 3. Select Rail & Baluster Kit
All options can be topped with cocktail railing for a form-meets-function ledge with the exception of Glass Rail Kit.

Aluminum Post with Cap & Skirt
2.5” x 2.5”
Actual dimensions
- 37” Post - Horizontal: 2.5” x 2.5” x 37” (63 mm x 63 mm x 939 mm)
- 43” Post - Horizontal: 2.5” x 2.5” x 43” (63 mm x 63 mm x 109 cm)
- 53” Post – Stair (cut-to-length): 2.5” x 2.5” x 53” (63mm x 63 mm x 134 cm)
Aluminum posts can only be used with the Trex Signature® line

Aluminum Crossover Post
2.5” x 2.5”
Actual dimensions
- 36” Crossover Post – Horizontal (includes crossover bracket): 2.5” x 2.5” x 36” (63 mm x 63 mm x 914mm)
- 42” Crossover Post – Horizontal (includes crossover bracket): 2.5” x 2.5” x 42” (63 mm x 63 mm x 106 cm)
Aluminum posts can only be used with the Trex Signature® line

ALUMINUM JOIST MOUNT POST
ACTUAL EXTERNAL DIMENSIONS
OF INSERT: 3.75” X 3.75” X 7”
- 63” Aluminum post (cut-to-length)
- Aluminum inserts with set screws
- 1/2” HG Bolts, washers and nuts (not pictured)
- Bolt spacing template
For use with 4x4 Composite post sleeve. Use with all Trex railing heights

3. STAIR–Rail Kit w/round or square balusters: Top Rail, Bottom Rail, Round or Square balusters, Mounting & Support Hardware
Includes
- Top Rail
- Bottom Rail
- Square Balusters
- Mounting & Support Hardware
Actual dimensions
- 6’ x 36”: 72” x 36” (182 cm x 914mm)
- 8’ x 36”: 96” x 36” (243 cm x 914mm)
- 6’ x 42”: 72” x 42” (182 cm x 106 cm)
- 8’ x 42”: 96” x 42” (243 cm x 106 cm)
Available in 6’ or 8’ lengths and 36” or 42” Rail height for horizontal and stair applications.

3. HORIZONTAL – Rail Kit w/round or square balusters: Top Rail, Bottom Rail, Square or Round Balusters, Mounting & Support Hardware
Includes
- Top Rail
- Bottom Rail
- Round Balusters
- Mounting & Support Hardware
Actual dimensions
- 6’ x 36”: 72” x 36” (182 cm x 914 mm)
- 8’ x 36”: 96” x 36” (243 cm x 914 mm)
- 6’ x 42”: 72” x 42” (182 cm x 106 cm)
- 8’ x 42”: 96” x 42” (243 cm x 106 cm)
Available in 6’ or 8’ lengths and 36” or 42” Rail height for horizontal and stair applications.

3. TREX SIGNATURE® RAILING PANEL
Includes
- 1 Pallet of Trex Signature® Railing Panels (20 panels)
- Trex Signature® Railing Mounting Hardware must be ordered separately.
Actual dimensions
- 6’ x 36”: 72” x 36” (182 cm x 914 mm)
- 8’ x 36”: 96” x 36” (243 cm x 914 mm)
- 6’ x 42”: 72” x 42” (182 cm x 106 cm)
- 8’ x 42”: 96” x 42” (243 cm x 106 cm)
Available in 6’ or 8’ lengths and 36” or 42” Rail height for horizontal applications. Only offered with square aluminum balusters.

3. RAIL & ROD KIT
Includes
- Top and Bottom Rail
- Vertical Supports
- Aluminum Rods
- Hardware and Bracket Pack
- Anti Rattle Strips
Actual dimensions
- 6’ x 36” (72-in x 36-in (182 cm x 914 mm)) Rail & Rod Kit - Horizontal or Stair
- 8’ x 36” (96-in x 36-in (243 cm x 914 mm)) Rail & Rod Kit - Horizontal or Stair
- 6’ x 42” (72-in x 42-in (182 cm x 106 cm)) Rail & Rod Kit - Horizontal or Stair
- 8’ x 42” (96-in x 42-in (243 cm x 106 cm)) Rail & Rod Kit - Horizontal or Stair
Available in Charcoal Black Rails and Platinum Rods or Bronze Rails and Platinum Rods.
Trex Signature® Glass Rail Kit*
Includes
- Top and Bottom Rail
- Hardware and Bracket Pack
- Footblock
Actual dimensions
- 6’ x 36” (72-in x 36-in (182 cm x 914 mm)) – Horizontal
Available with Charcoal Black or Classic White railing.
*Glass infill sold separately. Should be sourced locally.
Trex Signature® Mesh Rail Kit*
Includes
- Top and Bottom Rail
- Hardware and Bracket Pack
- Verticals
- Anti-rattle Gaskets
- Footblock
Actual dimensions
- 6’ x 36” (72-in x 36-in (182 cm x 914 mm)) - Horizontal or Stair
- 8’ x 36” (96-in x 36-in (243 cm x 914 mm)) - Horizontal or Stair
- 6’ x 42” (72-in x 42-in (182 cm x 106 cm)) - Horizontal or Stair
- 8’ x 42” (96-in x 42-in (243 cm x 106 cm)) - Horizontal or Stair
Available with Charcoal Black or Bronze railing.
*Mesh infill sold separately.
Trex Signature® Mesh Panel
Includes
- Mesh panel
Actual dimensions
- 64" x 32 - 3/8" Stainless Steel Mesh
- 88" x 32 - 3/8" Stainless Steel Mesh
- 88" x 38 - 3/8" Stainless Steel Mesh
- 108 - 3/16" x 36 - 3/16" Universal 316 Stainless Steel Mesh – Stair
Available in stainless steel.

Fixed Bracket (4-Pack) – Horizontal
Includes
- Qty (2) Fixed Top Rail Bracket and Cover–Horizontal
- Qty (2) Fixed Bottom Rail Bracket and Cover–Horizontal
- Qty (1) Fastener Pack

Fixed Bracket (4-Pack) – Stair
Includes
- Qty (1) Fixed Top Rail Bracket 1 and Cover–Stair
- Qty (1) Fixed Top Rail Bracket 2 and Cover–Stair
- Qty (1) Fixed Bottom Rail Bracket 1 and Cover–Stair
- Qty (1) Fixed Bottom Rail Bracket 2 and Cover–Stair
- Qty (1) Fastener Pack

Swivel Crossover Bracket Kit – Stair
Includes
- Qty (1) Swivel Crossover Bracket–Stair
- Qty (2) Post to Bracket Fasteners

Swivel Bracket – Horizontal
Includes
- Qty (1) Swivel Top Rail Bracket and Cover–Horizontal
- Qty (1) Swivel Bottom Rail Bracket and Cover–Horizontal
- Qty (2) Fastener Covers
- Qty (1) Fastener Pack

Swivel Bracket – Stair
Includes
- Qty (1) Swivel Top Rail Bracket and Cover–Stair
- Qty (1) Swivel Bottom Rail Bracket and Cover–Stair
- Qty (2) Fastener Covers
- Qty (1) Fastener Pack

Compound Swivel Bracket – Stair
Includes
- Qty (1) Compound Swivel Top Rail Bracket and Cover–Stair
- Qty (1) Compound Swivel Bottom Rail Bracket and Cover–Stair
- Qty (2) Fastener Covers
- Qty (1) Fastener Pack

Aluminum Footblock
Includes
- Qty (1) Footblock
- Qty (1) Footblock Anchor and fastener
Works Well With
All Trex Decking
Trex Signature® Railing pairs well with any of our decking colors, lending a contemporary edge to an otherwise classic outdoor room.
Deck Lighting
On railing posts. In stair risers. Along that shaded span of deck boards. Install deck lighting where you please to achieve the ambience you want.

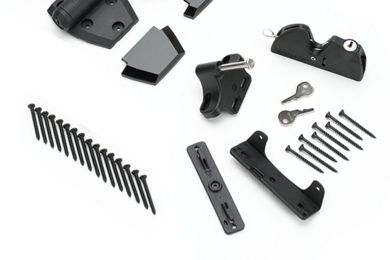

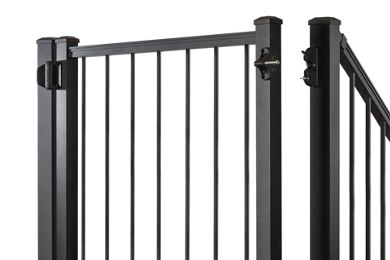

Aluminum Gates
Our sleek aluminum gates are designed to blend seamlessly with Trex Signature® Railing, while offering an extra level of safety, strength and accessibility.
