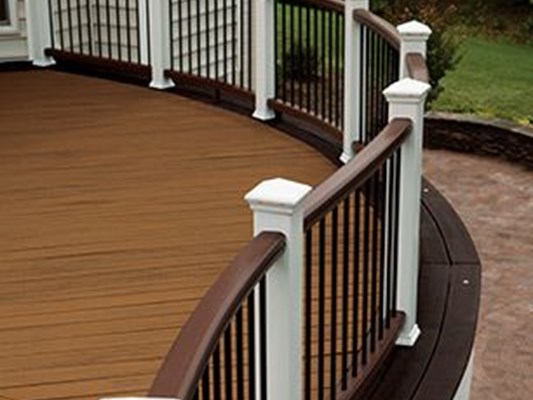

Timeless design you can trust - and tailor.

No other Trex railing line offers the freedom to mix and match infill and rails like Trex Transcend. As strong and sturdy as its namesake decking, Transcend puts every color combination within reach. Get style-specific or eliminate the guesswork with pre-designed kits.

This composite railing won’t rot, warp, peel or splinter (which trumps sanding row after row of wooden balusters any day), and it never needs painting or staining. Ever.

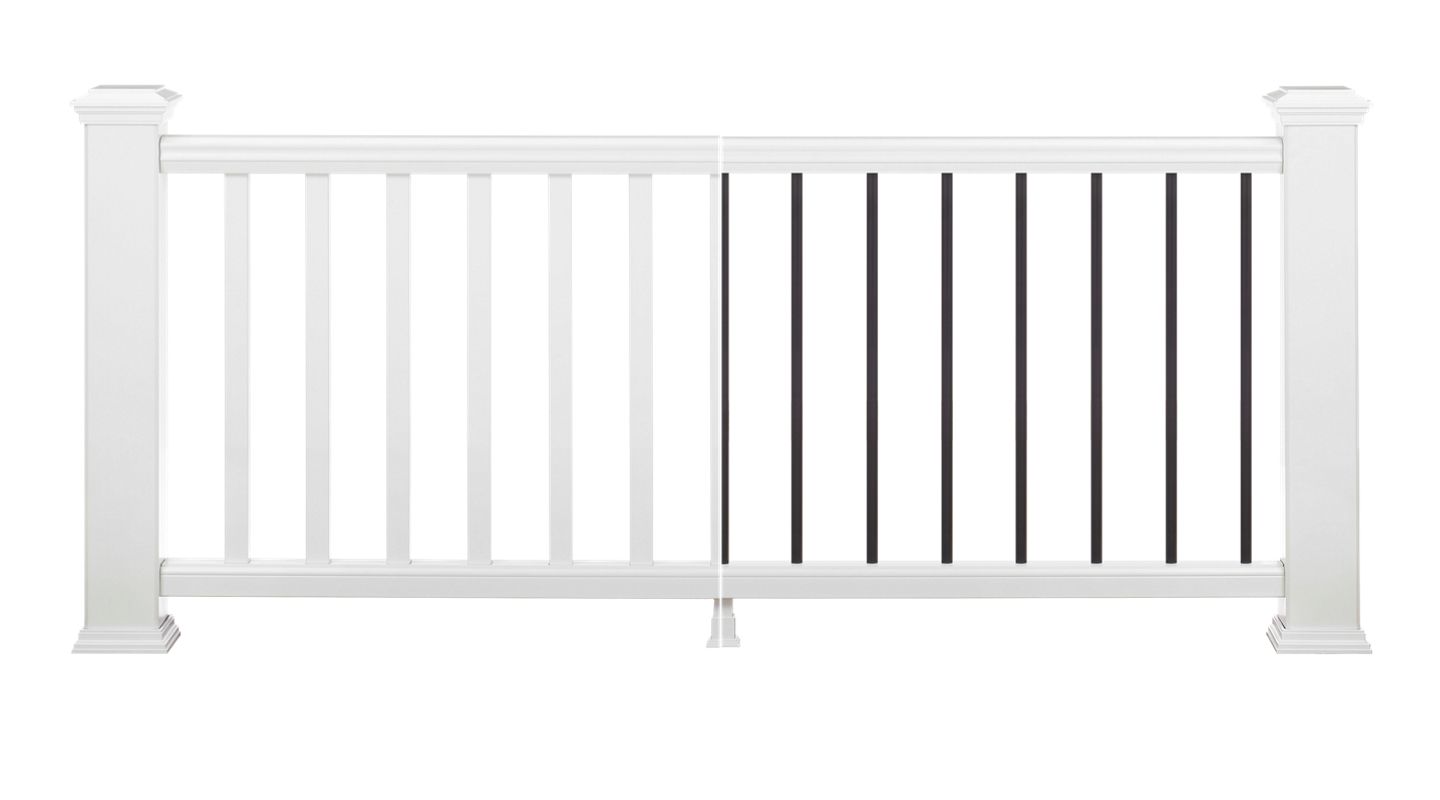

Transcend® Components

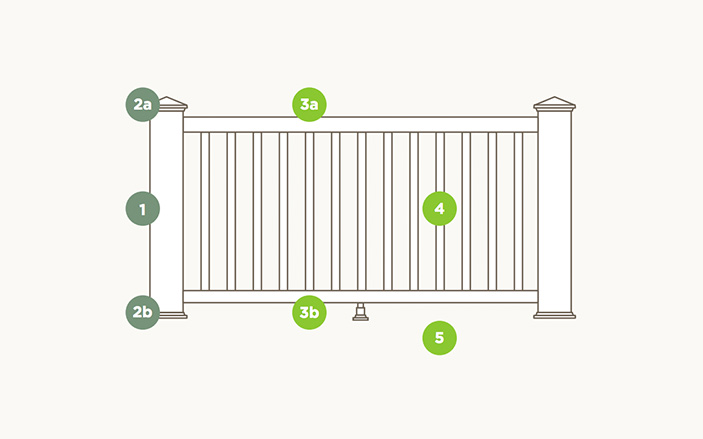

Transcend is either a 5-step or 3-step process. Choose Trex post sleeves, caps and skirts (steps 1 & 2). Then choose each component separately for a custom design (steps 3–5).

1.4 inch post sleeve
1. 4” POST SLEEVE
4” X 4” X 39”/108”
ACTUAL EXTERNAL DIMENSIONS:
  • 4.45” x 4.45” x 40” (113 mm x 113 mm x 101 cm)
  • 4.45” x 4.45” x 108” (113 mm x 113 mm x 274 cm)

Fits over 4”x4” Pressure-Treated Post

1.6 inch post sleeve
1. 6” POST SLEEVE
6” X 6” X 39”/108”
ACTUAL EXTERNAL DIMENSIONS:
  • 5.5” x 5.5” x 39” (139 mm x 139 mm x 990 mm)
  • 5.5” x 5.5” x 108” (139 mm x 139 mm x 274 cm)

Hollow sleeve that fits over a solid, pressure-treated post or post mount

Fits over 4”x4” Pressure-Treated Post

Available in Classic White only.

Flat Post Sleeve Cap
2A. FLAT POST SLEEVE CAP
ACTUAL EXTERNAL DIMENSIONS:
  • 4” x 4”: 4.55” x 4.55” (115 mm x 115 mm)
  • 6” x 6”: 5.55” x 5.55” (140 mm x 140 mm)

12 per box. Cap topping each post is the decorative finish that also withstands the weather.

6” Available in Classic White only.

Pyramid Post Sleeve Cap
2A. PYRAMID POST SLEEVE CAP
ACTUAL EXTERNAL DIMENSIONS:
  • 4” x 4”: 4.55” x 4.55” (115 mm x 115 mm)
  • 6” x 6”: 5.55” x 5.55” (140 mm x 140 mm)

12 per box. Cap topping each post is the decorative finish that also withstands the weather.

6” Available in Classic White only.

Post Sleeve Skirt
2B. POST SLEEVE SKIRT
ACTUAL EXTERNAL DIMENSIONS:
  • 4” x 4”: 4.55” x 4.55” (115 mm x 115 mm)
  • 6” x 6”: 5.55” x 5.55” (140 mm x 140 mm)

12 per box. Finishing piece at the base of the post that covers any cuts where the decking and railing meet. Usually coordinates with the cap.

6” Available in Classic White only.

Rail and Baluster Kit - Composite
3. RAIL & BALUSTER KIT - COMPOSITE

Includes: Crown Top Rail, Universal Bottom Rail, Square Balusters, Baluster Spacers, Adjustable Foot Block and Mounting Hardware

  • 6’ x 36” Rail & Baluster Kit - Composite:
    • Horizontal – available in Classic White, Charcoal Black and Vintage Lantern
    • Stair – available in Classic White
  • 8’ x 36” Rail & Baluster Kit - Composite:
    • Horizontal and Stair – available in Classic White, Charcoal Black and Vintage Lantern

Actual dimensions: 6’ Rail: 67.5 in x 36 in (171 cm x 914 mm); 8’ Rail: 91.5 in x 36 in (232 cm x 914 mm)

Rail and Baluster Kit - Aluminum
3. RAIL & BALUSTER KIT - ALUMINUM

Includes: Crown Top Rail, Universal Bottom Rail, Round Aluminum Balusters, Baluster Spacers, Adjustable Foot Block and Mounting Hardware

  • 6’ x 36” Rail & Baluster Kit - Aluminum:
    • Horizontal and Stair – available in Classic White, Charcoal Black and Vintage Lantern
  • 8’ x 36” Rail & Baluster Kit - Aluminum:
    • Horizontal and Stair – available in Classic White, Charcoal Black and Vintage Lantern

Actual dimensions: 6’ Rail: 67.5 in x 36 in (171 cm x 914 mm); 8’ Rail: 91.5 in x 36 in (232 cm x 914 mm)

Trex Transcend black crown top railing
3A. CROWN TOP RAIL
ACTUAL LENGTH:
  • 6’ Rail:67.5” (171 cm)
  • 8’ Rail:91.5” (232 cm)

Horizontal rail attached to the top of the balusters and the posts

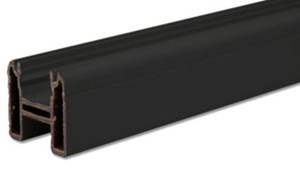

Transcend Universal Top Bottom Rail
3A/3B. TRANSCEND UNIVERSAL TOP/BOTTOM RAIL
ACTUAL LENGTH:
  • 6’ Rail:67.5” (171 cm)
  • 8’ Rail:91.5” (232 cm)

Horizontal rail attached to both the top and bottom of the balusters and the posts; the top rail portion serves as base for the installation of a deck board that acts as a cocktail rail

Round Aluminum Baluster

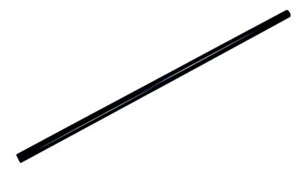

4. ROUND ALUMINUM BALUSTER
ACTUAL DIMENSIONS:
  • 36” Rail Height: .75” x 30.25” (19 mm x 768 mm)
  • 42” Rail Height: .75” x 36.25” (19 mm x 920 mm)

20 per pack
Vertical rungs–sometimes called spindles–that fill the space between posts

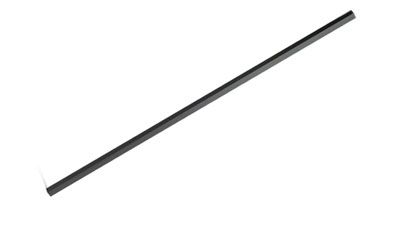

Square Aluminum Baluster
4. SQUARE ALUMINUM BALUSTER
ACTUAL DIMENSIONS:
  • 36” Rail Height: .75” x 30.25” (19 mm x 768 mm)
  • 42” Rail Height: .75” x 36.25” (19 mm x 920 mm)

20 per pack
Vertical rungs–sometimes called spindles–that fill the space between posts

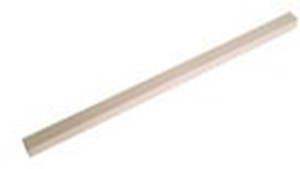

Square Baluster
4. SQUARE BALUSTER
ACTUAL DIMENSIONS:
  • 36” Rail Height: 1.418” x 1.418” x 30.375” (36 mm x 36 mm x 771 mm)
  • 42” Rail Height: 1.418” x 1.418” x 36.375” (36 mm x 36 mm x 923 mm)

16 per pack
Vertical rungs–sometimes called spindles–that fill the space between posts

Trex Transcend glass railing
5. GLASS PANEL ACCESSORY KIT

6’ Rail: 67.5” (171 cm)

Glass panel mounting hardware; glass panel not included

Accessory Infill Kit
5. ACCESSORY INFILL KIT

Includes: 2 Baluster Spacers, Adjustable Foot Block, Mounting Hardware

Actual lengths: 6’ Rail: 67.5” (171 cm); 8’ Rail: 91.5” (232 cm)

Available in 6’ and 8’ lengths for square, colonial and round balusters; horizontal and stair applications.

transcend mounting kit horizontal
MOUNTING HARDWARE FOR CUT RAILS—HORIZONTAL
CONTAINS:
  • Qty (2) Crown Top Rail Gaskets—Horizontal
  • Qty (4) Universal Top/Bottom Rail Gaskets—Horizontal
  • Qty (4) RSB Rail Brackets
  • Qty (8) Rail to Bracket Fasteners—Horizontal
  • Qty (8) Rail to Post Fasteners
  • Qty (4) Screw Tip Covers
transcend mounting kit stair

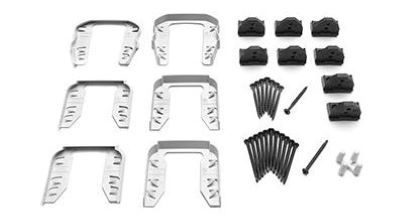

MOUNTING HARDWARE FOR CUT RAILS—STAIR
CONTAINS:
  • Qty (1) Crown Top 1 Rail Gaskets—Stair
  • Qty (1) Crown Top 2 Rail Gaskets—Stair
  • Qty (2) Universal Top/Bottom 1 Rail Gaskets—Stair
  • Qty (2) Universal Top/Bottom 2 Rail Gaskets—Stair
  • Qty (8) RSB Rail Brackets
  • Qty (8) Rail to Bracket Fasteners— Stair
  • Qty (8) Rail to Post Fasteners
  • Qty (4) Screw Tip Covers
transcend rsb bracket horizontal

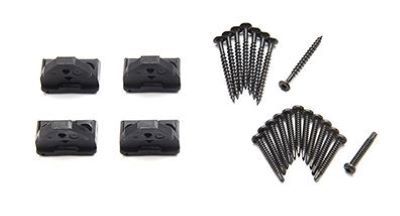

RSB BRACKET PACK—HORIZONTAL
CONTAINS:
  • Qty (4) RSB Rail Brackets
  • Qty (8) Rail to Bracket Fasteners—Horizontal
  • Qty (8) Rail to Post Fasteners
transcend rsb bracket stair

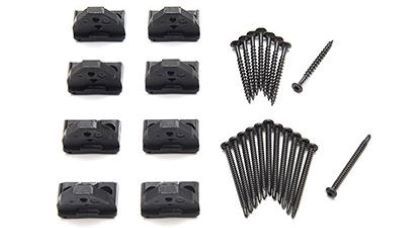

RSB BRACKET PACK—STAIR
CONTAINS:
  • Qty (8) RSB Rail Brackets
  • Qty (8) Rail to Bracket Fasteners—Stair
  • Qty (8) Rail to Post Fasteners
transcend 0 degree rail gasket horizontal
0 DEGREE RAIL GASKET PACK—HORIZONTAL
CONTAINS:
  • Qty (2) Crown Top Rail Gaskets—Horizontal
  • Qty (4) Universal Top/Bottom Rail Gaskets—Horizontal
